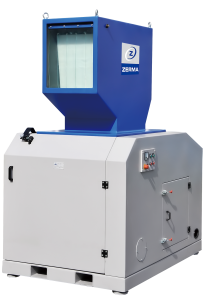

ZERMA – GSC 500 Series

General Description:

The GSC compact/sound proof granulators are designed with a complete sound proof enclosure resulting in an extremely quiet operation.Different rotor designs are available in widths ranging from 500 mm to 1400 mm with a diameter of 500 mm. The completely welded cutting chamber in conjunction with the “V” type rotor design ensures dependability in operation and universal application use. While it delivers excellent sound proofing capabilities, it still offers easy and quick access to the cutting chamber during rotor and stator knife changes, servicing or screen changes. The sound dampening material used in these machines is based on the latest technological research.

Applications

The cutting geometry of the GSC series allows even voluminous materials to be ground. The complete GSC series line achieves a high quality regrind independent of the material type or form such as injection moulded parts, blow moulded parts, profiles, sheets, film, etc. The 500 series GSC machines are mainly used in inline operations or small central granualtors for processing of medium sized hollow thin walled products, or runners and sprues. The integrated sound proofing makes it possible to easily place the machine in existing operations. With different rotor designs and a wide variety of options the machines can be tailored for many different applications.

Details:

Rotor and stator knives are pre-set outside the machine prior to installation in a supplied fixture. This makes awkward adjustment inside the machine unnecessary.

To minimize the needed floor space and make the machine easy to move the control cabinet is integrated into the machines soundproof housing.

To ensure a safe operation and quick and easy access for cleaning and maintenance the GSC 500 machines cutting chamber is opened hydraulically.
