JONWAI – SEII series







Catalogue Download

The New concept of Universal Machines

JONWAI successfully established a classic model – SD series for general purpose molding in 2001 SD unique combination of flexible, reliable & universal in application already set a perfect paradigm in molding machine industry.

Over the years the global molding industry condition have changed, precise speed & lower illrate are highly demanded

JONWAI deeply recognized these changes and now presenting the next generation of high performance universal application model SE series.

The update SE model inherited the advantage of SD model & further enhanced functions to make it more suitable for nowadays plastic molding industry.

The flexible design of SE series make it easier to expand to SEII model & SEIII model to meet customers precise and complicated molding requirements.

Speed

Fast Movement due to the 5-Point internal clamping system.

High injection speed and capacity.

High response of computer & hydraulic.

Fast Material Charging.

Precision & User Friendly

High Repeatability Sequnces.

Unique & Intelligent control of process.

Window Based simple operation panel.

Easy Programming & Clear Overview.

Flexible & High Expandability

The flexible design of SE series make it easier to expand to SEII model & SEIII model to meet customers precise and complicated molding requirements.

Reliability

Reinforce Machine Base

Stable Mechanical Sequence

Solid IQC system before machine assembly and delivery

Fast Movement & short Dry Cycle

Fast Movement due to 5-Point internal clamping system.

Solid Mold Closing Unit

Solid Box-Like structure mold closing unit, rigidity & strength improved with F.E Analysis.

User Friendly Control

Window based operation panel with clear overview monitoring page & integrated sequence display.

Quick Response Hydraulic System

Quick response hydraulic system coordinate with JONWAI unique servo power unit, response time only at 50 ms.

High Plasticizing & Capacities Injection Unit

4 Cylinders design injection system allow high-pressure / low-speed or low-pressure / high-speed Injection choice.

Nozzle Center on Line & Linear injection movement

2 cylinders sliding guide bar ensure nozzle center on line.

Injection position with twin-end support enhance the linear Injection movement.

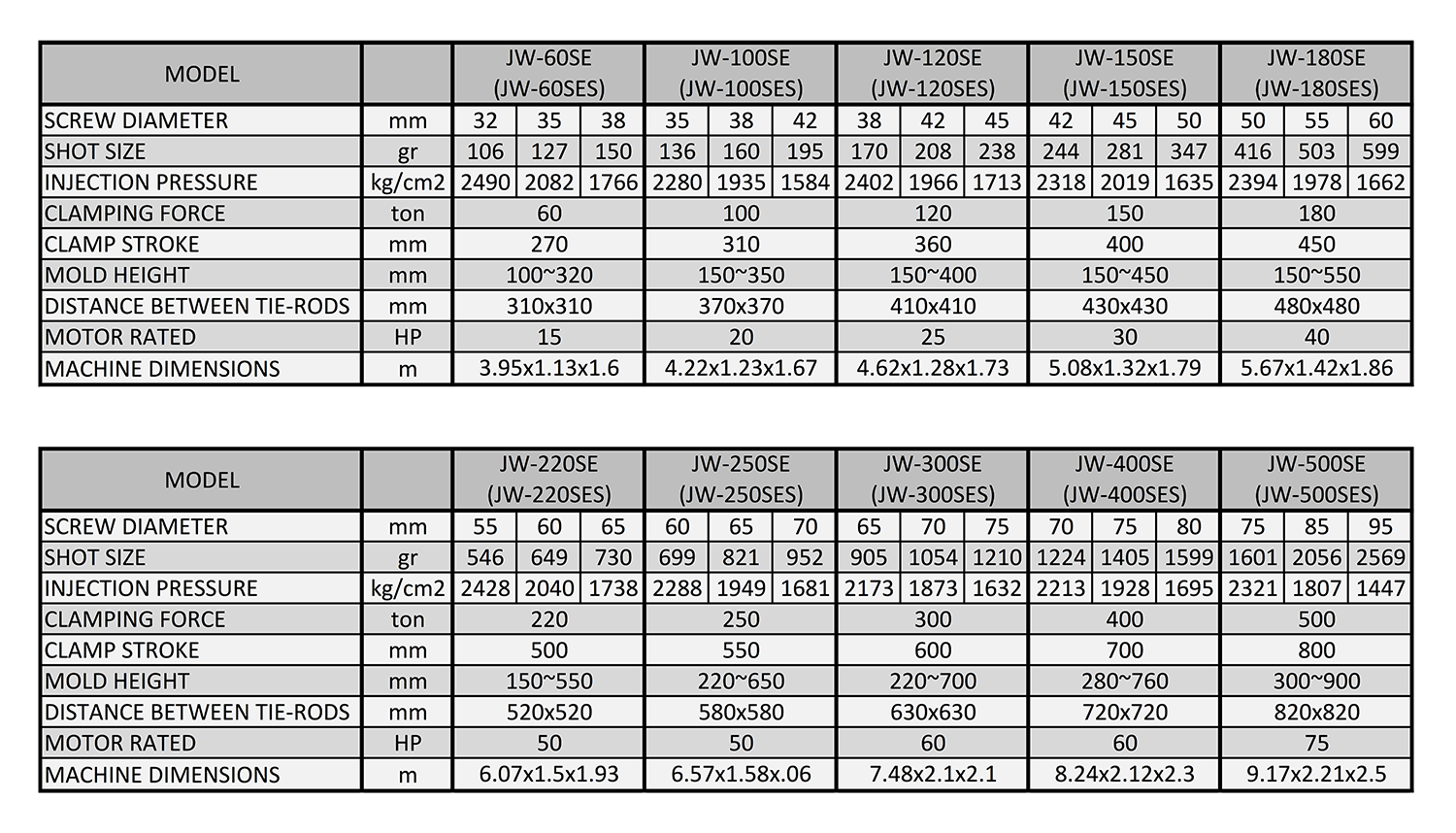

Specification
